10-20T/H three Cylinder rotary sand dryer sand drying machine
1. Description Of MG Three Cylinder Rotary Sand dryer:
Three cylinder sand dryers are also called sand dryer, river sand dryer, sand drying machine, yellow sand dryers, dry mortar dryers, etc. River sand( yellow sand, mechanical sand) is an important raw material in construction engineering, with the requirement of urban development and construction, cement mortar (dry powder mortar, the mixed mortar, dry mortar, insulation mortar) and the demand is also increasing, the kinds of river sand dryer arises at the historic moment, and is widely used in sand making, building material, metallurgy, mineral processing, chemical industry, cement industry, etc.
The wet sand feeding from the wet sand bin by forklift, then belt conveyor carry the wet sand at a certain speed to the sand dryer port, then through the quicksand pipe into the inner cylinder of the dryer. The slag is pushed forward by raising plate from inner cylinder to the middle cylinder to the outside cylinder. This process of "two in, one out" is completed in the dryer, which can form a heat preservation system.
In order to reduce air pollution, we are equipped with a cyclone dust collector and water dust removal. At the same time, the dry material enter the vibrating screen for screening, and then send dried material to the finished product warehouse by a belt conveyor.
2. Parameter of MG Three Cylinder Rotary Sand Dryer:
| Model | MG623 | MG625 | MG6210 | MG6220 |
| Capacity | 3-5T/H | 6-8T/H | 10-12T/H | 15-20T/H |
| Machine height | 4-5m | 4-6m | 5-6m | 6-7m |
| Total power | 30-40KW | 30-40KW | 40-50KW | 40-60KW |
| Worker required | 1-2 person | 1-2 person | 1-2 person | 1-2 person |
| Workshop required | 500-600m2 | 600-800m2 | 800-1000m2 | 1000-1500m2 |
| Fuel | Coal/Gas/Diesel | Coal/Gas/Diesel | Coal/Gas/Diesel | Coal/Gas/Diesel |
| Vibrating screen | Include | Include | Include | Include |
| Cyclone dust collector | Inlcude | Inlcude | Include | Include |
| HS code | 8419399090 | 8419399090 | 8419399090 | 8419399090 |

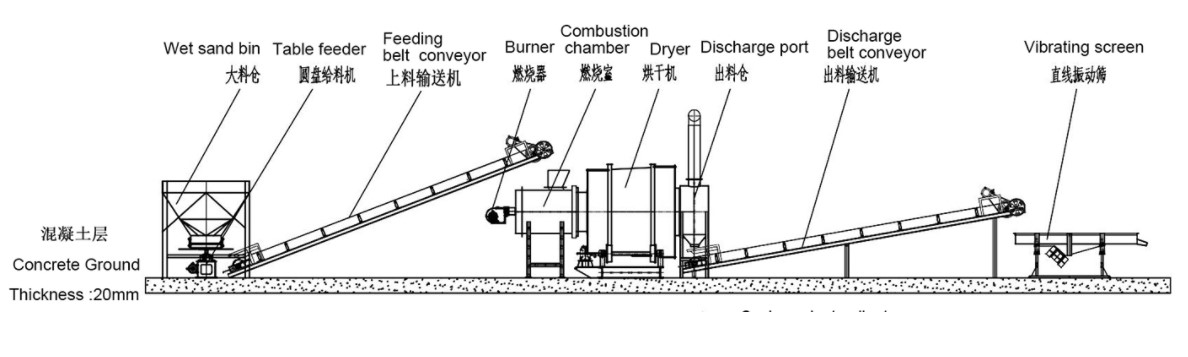

3. Flow Chart Drawing of MG Three cylinder rotary sand dryer:
4. Configuration of MG Three Cylinder Rotary Sand dryer:

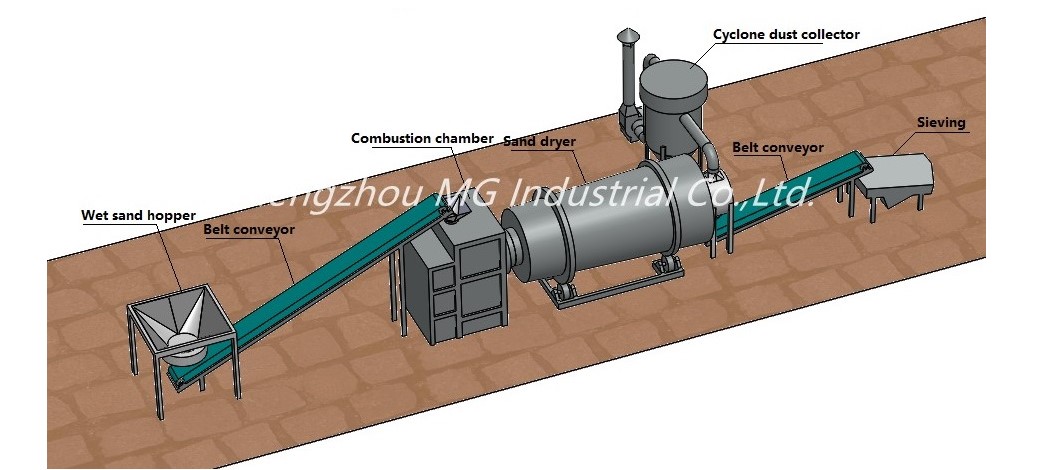

5. 3D drawing of MG Three Cylinder Rotary Sand dryer:
6. Company profile:

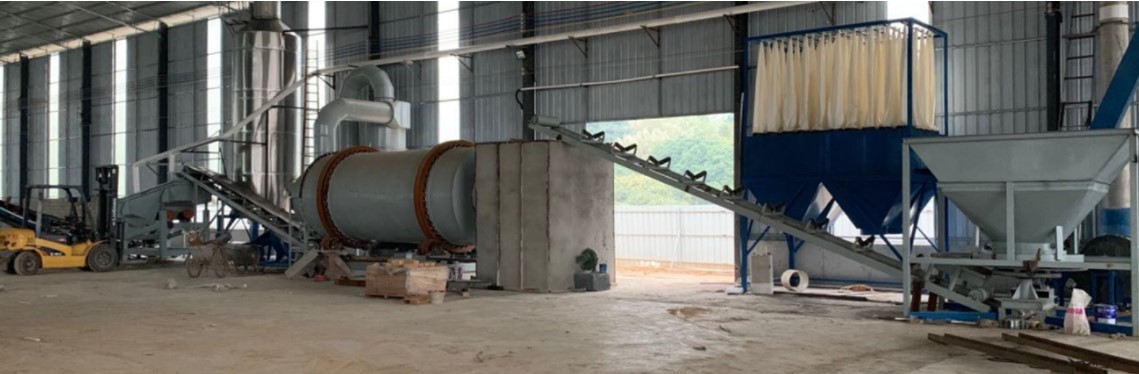

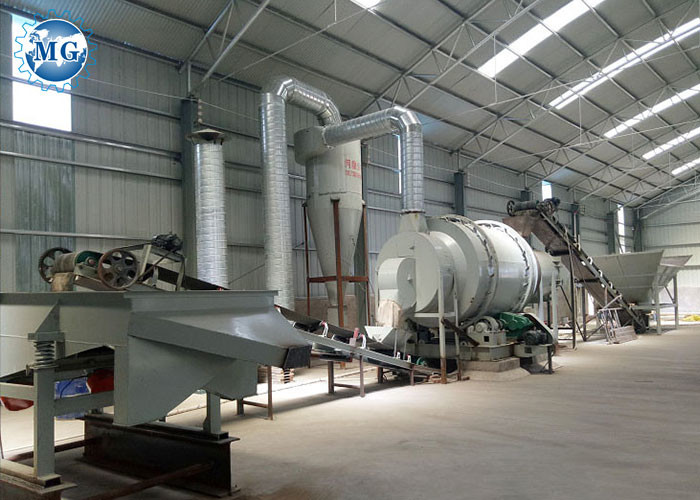

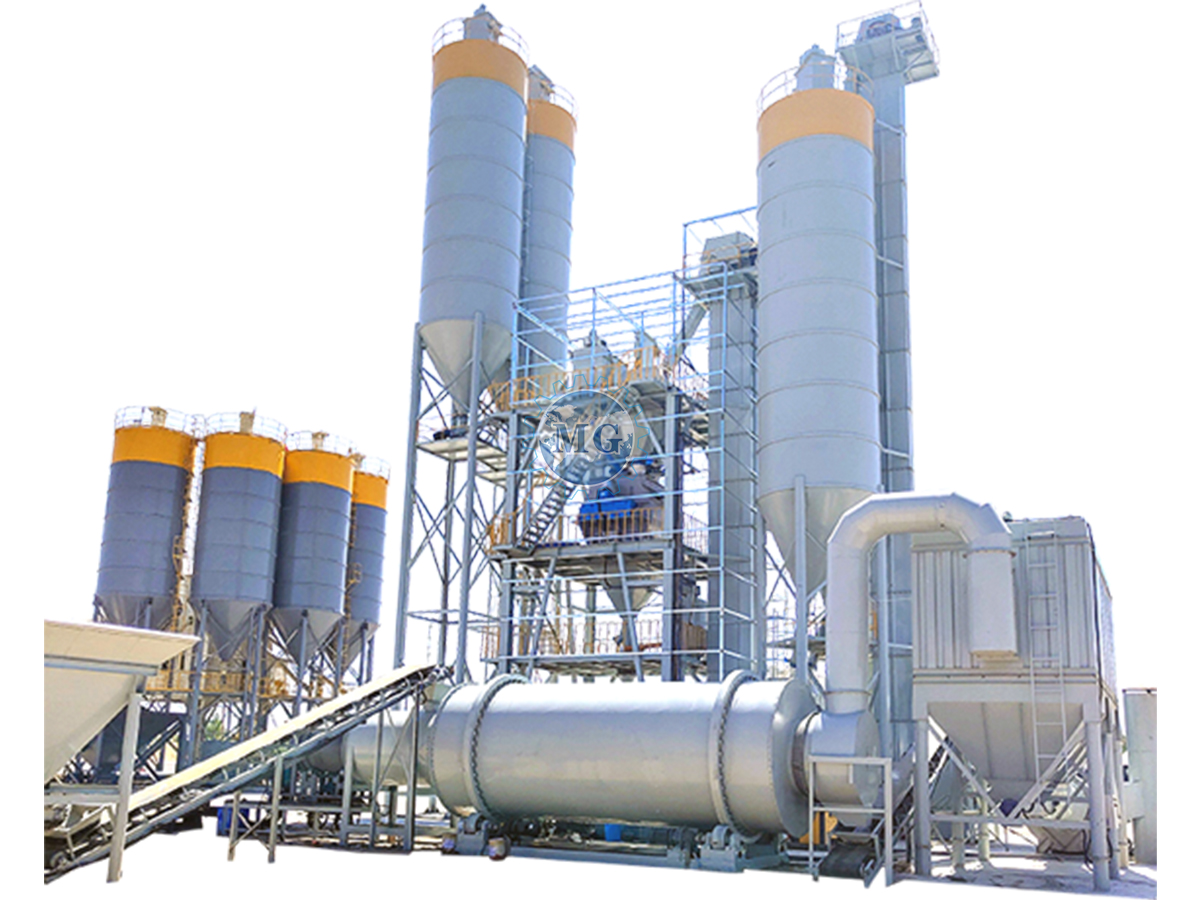

7. Customer working site of MG three cylinder rotary sand dryer:
8. Customer Visting factroy for the Sand dryer:
If you want to know more of our dry mortar plant, please send us inquiry or contact us directly.
